Irrigate up to 98% of square or rectangular areas
Valley linears are suitable for areas of 4-405 hectares with slopes to 6%. They can cover large areas and odd-shapes such as L shaped fields by pivoting
around the cart axis at the end of a run. When combined with forward-reverse tow options, this gives great flexibility.
Water supply options include Canal feed and Hose feed.
Guidance by three possible methods - above-ground cable, furrow, or below-ground.
|
Canal feed
- Power and water pressure are supplied by an on-board diesel generator and direct coupled pump.
- Machines can be up to 975m in length.
- Pumps and engines to deliver from 31.5 to 252.3 litres per second.
|

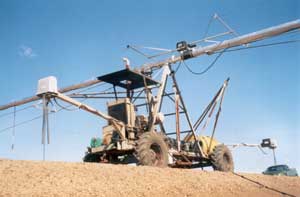

Canal feed linear
|
Hose feed
- Water is supplied by a flexible hose from a pressurised mainline.
- Onboard diesel supplies electrical power.
- Poly hoses with inside diameters to 152mm.
- Flow rates from 12.6 to 88.3 litres per second.
|

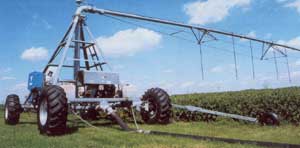

Hose feed linear
|
On-board power
On-board power is supplied by a diesel generator. In the case of canal feed machines, this will also be direct-coupled to a pump.
|

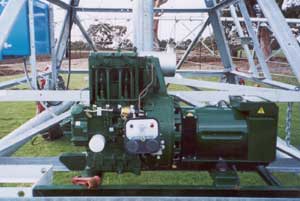

Diesel generator
|
Cart options
Two-wheel
- Forward and reverse towing.
- Dual water inlet both ends.
- Highly versatile for different shaped fields.
- Swing around option available.
|
Four-wheel
- Suits larger fields up to 793m wide, where high water flows require large hoses and extra traction.
- Dual water inlets each end allows for changing hoses without shutting off water.
- Swing around option available.
|
